AT A GLANCE
What Is AirBeam Designed For?
AirBeam is a directional industrial airflow fan designed to project concentrated air along warehouse aisles, production lines, packing areas and other defined working zones where wide-area ceiling airflow may not be the best solution.
How Much Airflow Can AirBeam Deliver?
AirBeam can deliver up to 47,706 m³/h of maximum airflow, providing powerful targeted air movement for industrial and logistics environments.
How Far Can AirBeam Project Air?
AirBeam can project airflow up to approximately 27 metres, making it particularly effective for long aisles, fixed workstations, conveyors and production areas.
How Large & Powerful Is AirBeam?
The AirBeam 1170 has a 1,170 mm fan diameter, a published 1.04 kW motor and a maximum speed of 475 rpm.
What Electrical Supply Does AirBeam Require?
The published AirBeam specification uses a 200–480 V AC, three-phase, 50/60 Hz electrical supply. Final electrical requirements should be confirmed for the individual installation.
Can AirBeam Be Used With Smart Controls?
Yes. AirBeam is compatible with MegaFan control options including the Smart HVLS Controller, allowing suitable systems to form part of automated fan and building-control strategies.
Have Additional Questions?
Call Us
0161 426 0218
Mail Us
sales@megafans.co.uk
Maximum Airflow. Maximum Coverage. Minimum Running Costs.
AirBeam DIRECTIONAL HVLS FANS
AirBeam is MegaFan’s directional industrial airflow solution, engineered to project a concentrated stream of air into warehouse aisles, production lines, packing areas and defined working zones where broad overhead airflow may not be the most effective approach.
With maximum airflow of 47,706 m³/h and air projection of up to approximately 27 metres, AirBeam can deliver targeted air movement deep into long or heavily racked spaces. The AirBeam 1170 uses a 1,170 mm diameter fan, 1.04 kW motor and can operate at up to 475 rpm.
Its focused airflow makes AirBeam particularly useful for occupied areas where employees remain in defined locations, while its IP65-rated motor protection and industrial construction support use in demanding warehouse and manufacturing environments.
- Project airflow up to approximately 27 metres
- Deliver up to 47,706 m³/h of airflow

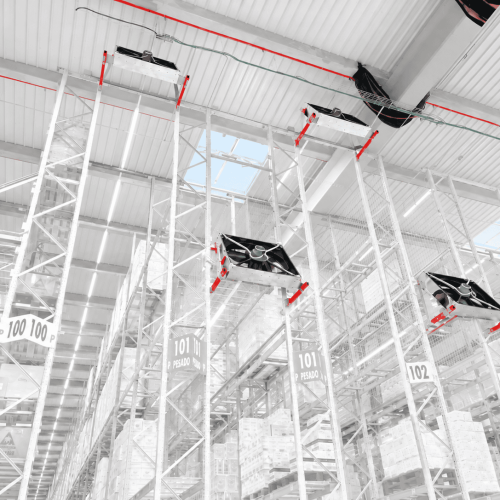

- Target long aisles and defined working zones
- Reach areas between warehouse racking
- IP65-rated motor protection
- Variable-speed control for targeted airflow
Selecting AirBeam Is About Putting Airflow Where It Is Needed
A suitable AirBeam installation should be designed around the required airflow direction, projection distance, working areas, surrounding obstructions and mounting position before the final fan location and angle are confirmed.
Ready to Target the Right Areas With AirBeam?
Tell us about your building, aisle lengths, working areas and where airflow is needed most. Our team can help recommend the right AirBeam positioning, projection direction, quantity and control solution for your site.
Technical Performance

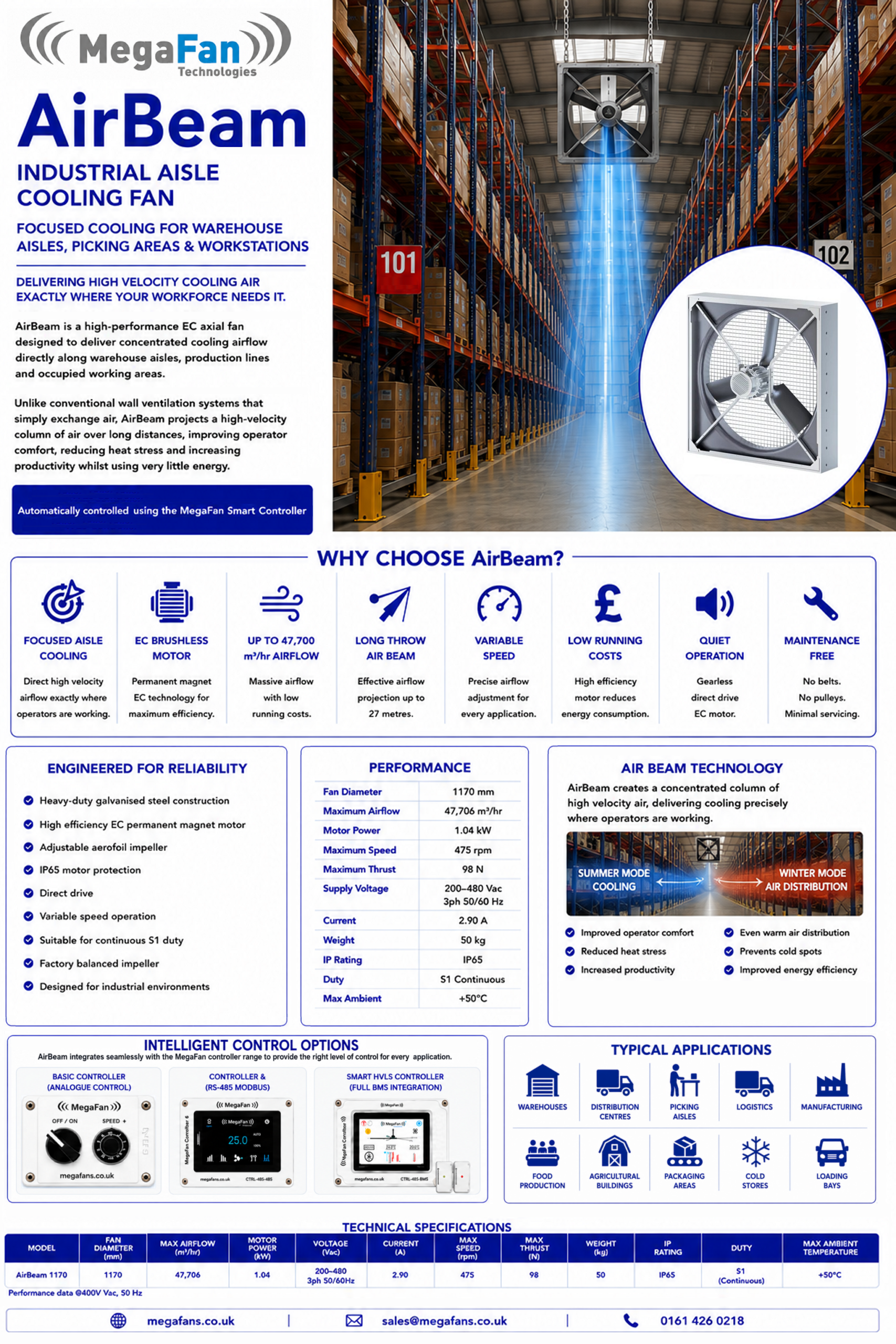

Performance and electrical specifications for the 1,170 mm fan, based on the AD1400A model in the supplied technical datasheet.
WHY CHOOSE AirBeam?
Focused Aisle Cooling
Direct high velocity airflow exactly where operators are working.
EC Brushless Motor
Permanent magnet EC technology for maximum efficiency.
Up To 47,700 m³/hr Airflow
Massive airflow with low running costs.
Long Throw Air Beam
Effective airflow projection up to 27 metres.
Variable Speed
Precise airflow adjustment for every application.
Low Running Costs
High efficiency motor reduces energy consumption.
Quiet Operation
Gearless direct drive EC motor.
Maintenance Free
No belts.
No pulleys.
Minimal servicing.
Estimate Your AirBeam System Requirements
Enter the length and number of directional airflow runs you want to serve. The calculator provides an initial AirBeam quantity, system airflow, connected motor load, indicative running cost and controller recommendation.
AirBeam Planning Inputs
Use individual aisles, production lines or defined working zones as separate directional airflow runs.
Your AirBeam Estimate
Results use AirBeam performance figures and the planning assumptions entered opposite.
2 fans per run × 4 directional runs
Suitable for this larger multi-fan installation.
Ready to Find the Right AirBeam System for Your Building?
Tell us about your building, airflow requirements and the areas you want to improve. Our team can help recommend the right fan size, quantity, positioning and control solution for your site.
AIRBEAM FAQ's
What Is AirBeam Designed For?
AirBeam is MegaFan’s directional industrial airflow fan, designed to project concentrated airflow towards warehouse aisles, production lines, packing areas, workstations and other defined occupied zones rather than circulating air across an entire building.
How Far Can AirBeam Project Air?
AirBeam has a published air projection of up to approximately 27 metres, making it particularly useful for long aisles and defined working areas. Actual effective projection depends on positioning, obstructions and site conditions.
How Much Airflow Can AirBeam Deliver?
The AirBeam 1170 delivers up to 47,706 m³/h maximum airflow, providing a concentrated stream of high-volume air for industrial and logistics environments.
How Large Is The AirBeam 1170?

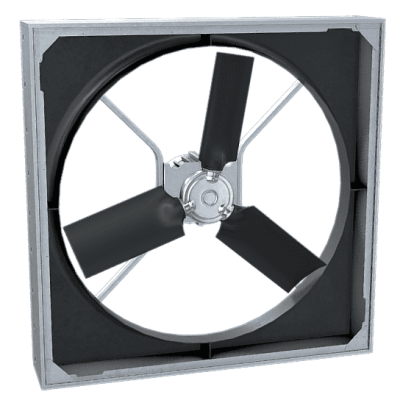

AirBeam 1170 has a 1,170 mm fan diameter, a 1.04 kW motor, a maximum speed of 475 rpm and maximum thrust of 98 N.
Does AirBeam Require Three-Phase Power?
Yes. The published AirBeam 1170 specification requires 200–480 V AC, three-phase, 50/60 Hz, with a current of 2.90 A. Final electrical requirements should be confirmed for each installation.
Where Can AirBeam Be Used?

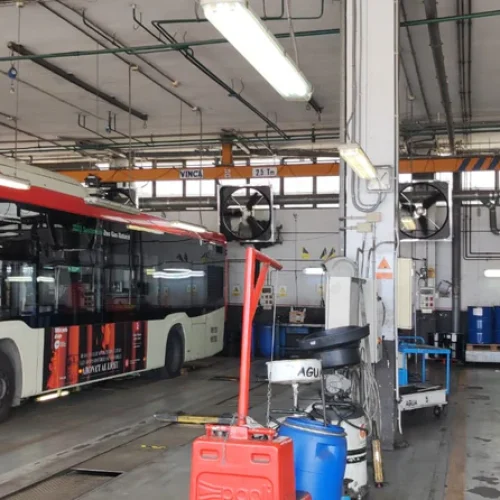

Typical applications include warehouses, distribution centres, picking aisles, packing and fulfilment areas, manufacturing facilities, production lines, goods-in areas and loading-bay work zones.
Is AirBeam Suitable For Industrial Environments?
AirBeam 1170 has a IP65 motor protection, S1 continuous duty, a maximum ambient temperature of +50°C and a fan weight of 50 kg.
What Controllers Can Be Used With AirBeam?
AirBeam is compatible with the Basic Controller, Controller 6 and Smart HVLS Controller. Basic provides local control for one compatible fan, Controller 6 can individually operate up to six compatible fans, and the Smart HVLS Controller can support up to 20 AirMax, AirWall or AirBeam devices.
Can AirBeam Connect To A BMS?
Yes, suitable AirBeam installations can use MegaFan’s advanced control options for Modbus and compatible BMS integration. The exact BMS, Modbus and fire-alarm interfaces should always be confirmed during project specification.
